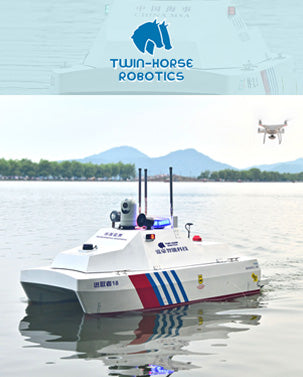

Enterprise 18 USV

Typical Tasks:

With fast speed, flexible operation, long life, adequate load space characteristics. Mainly used for scientific experiments, teaching applications, photography, water quality sampling, mapping, exploration, material transport, police law enforcement, military patrol and other fields.

Design Features:

1) The overall use of the new design of the catamaran type, glass steel hull, glass fiber reinforced plastic. The main hull is made of surface felt, untwisted alkali-free glass fiber cloth and unsaturated polyester resin, and the hull surface is coated with high performance TM marine gel coat. And the superstructure, one molding process, you can achieve a good seal waterproof performance, durable, impact resistance, wind and waves performance. Can guarantee the hull completely into the water after the sealing performance. Double hull, sandwich filled with foam to ensure that no sink.
2) The use of hybrid propulsion system, while ensuring a large thrust, you can ensure that the main propulsion system failure to return (electric propulsion system is not included in the standard).
3) power supply maintenance-free batteries and lithium batteries, no maintenance and liquid, safe and reliable.
4) The use of fully sealed electronic equipment cabin, can completely protect the electronic equipment and maintain intuitive contact, electronic equipment reserved cooling system.
5) 2.4G digital ratio of remote control equipment combined with digital radio, remote control distance, anti-interference ability.
6) installation of high-resolution camera, remote video wireless transmission system.
7) Set the load sensor position.
8) Install GPS + INS autonomous navigation system. Can be planned in accordance with pre-planned routes, and at any time to change the route planning and manual intervention.
9) Integrated ground station system. Impact, waterproof, easy to carry.

Technical Specifications:

Weight: 60kg External remote control: 0.85kg Ground Station: 4.7kg
Length: 1.92m
Width: 0.95m
Draft: 0.16m
Height: 0.69m(Not contain antennas, cameras, etc.)
Displacement: 80kg
Load: 130kg
Speed: >6km/h
Motor: 500-1000W
Power: 12-24V Li-Po or lead acid battery
Cruise Duration: >4h
Remote-controlled distance: >5km
Navigation Mode:Auto/Manual
